Features and Benefits
- Frequency Range: 10.0 – 1450.0MHz
- Supply Voltage: 2.5 or 3.3V
- Steady Current: 18.0mA(max.)
- Output Waveform: LVDS
- Frequency Stability vs. Operating Temperature: ± 0.5ppm
- Aging: ±1.0ppm(first year)
- Phase Noise @ 10kHz : -122dBc/Hz
- Operating Temperature: -40°C to +85°C

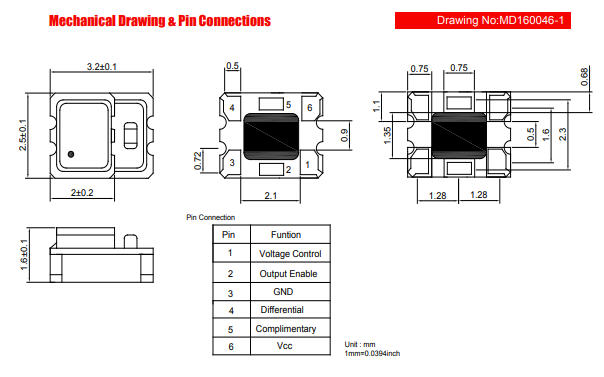

- Size: 2.5mm x 3.2mm x 1.6mm(max.)
Typical Applications
- WiMax, WLAN, Telecommunication, Mobile Phone
