Low Power Crystal Oscillator (XO)

Customizable: Yes

Features and Benefits

- Frequency range: 3MHz to 60MHz

- Supply voltage: 1.8V/2.5V/3.3V

- Current: 15mA Max.

- Frequency stability vs. temperature: ±20PPM-100PPM

- Aging: ±3PPM per year

- Operating temperature: -40°C to +105°C

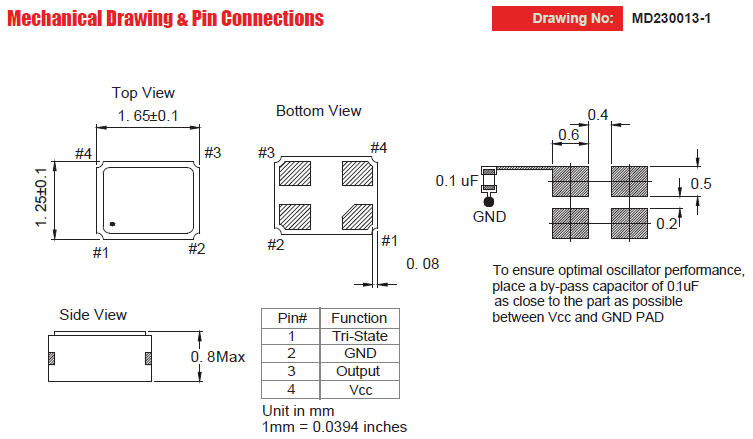

- Size: 1.6x1.2x0.8 mm

Typical Applications


- Mobile Phone

- DSC, Set-top Box, HDTV

Product Specifications

General Parameters:
Sub Category: Miniature Size XO,Low Power XO
Type: XO
Supply Voltage (V): 1.8 V, 2.5 V, 3.3 V
Output Type: CMOS
Frequency Min (MHz): 3.0 MHz
Frequency Max (MHz): 60.0 MHz
Frequency Stability (ppm): 20.0 ppm
Operating Temperature (°C): -40 to +105
Length: 1.6 mm
Width: 1.2 mm
Height: 0.8 mm
