XO2016Z1

Miniature SMD CMOS Clock Oscillator

Customizable: Yes
XO2016Z1
Data Sheet

Features and Benefits

  • Frequency from 0.75 MHz up to 80.00 MHz

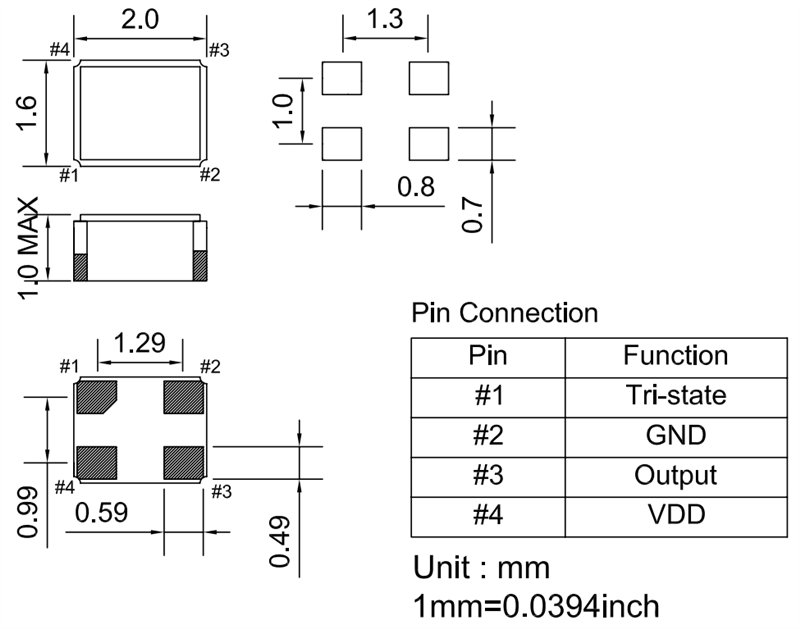

  • Sub miniature package: 2.0 x 1.6 x 1.0 mm
  • High shock and vibrational resistivity

Product Specifications

General Parameters:
Sub Category: Miniature Size XO
Type: Standard XO
Frequency Min (MHz): 0.75 MHz
Frequency Max (MHz): 80 MHz
Frequency Stability (ppm): 25 ppm
Output Type: CMOS
Supply Voltage (V): 1.8 V
Operating Temperature (°C): -40 to +85
Length: 2 mm
Width: 1.6 mm
Height: 1 mm
