XO2520AT-20MHz-A   New Product

Clock Oscillator

Features and Benefits

- Frequency Range: 20MHz

- Supply Voltage: 5V

- Steady Current: 30mA Max

- Output Waveform: CMOS

- Frequency Tolerance: ±50ppm

- Aging: ±5ppm first year

- Operating Temperature: -40°C to +85°C

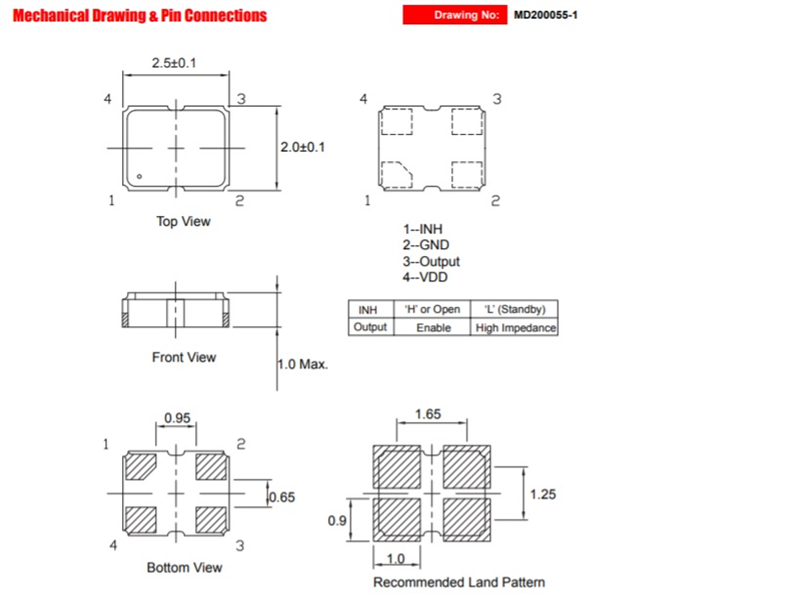

- Size: 2.5 x 2.0 x 1.0mm

Typical Applications:

- IWLAN

- GPS

- Smartphone


Product Specifications

General Parameters:
Type: XO
Supply Voltage (V): 5
Output Type: CMOS
Frequency Min (MHz): 20
Frequency Max (MHz): 20
Frequency Stability (ppm): 50
Operating Temperature (°C): -40 to +85
Length: 2.5
Width: 2.0
Height: 1.0
