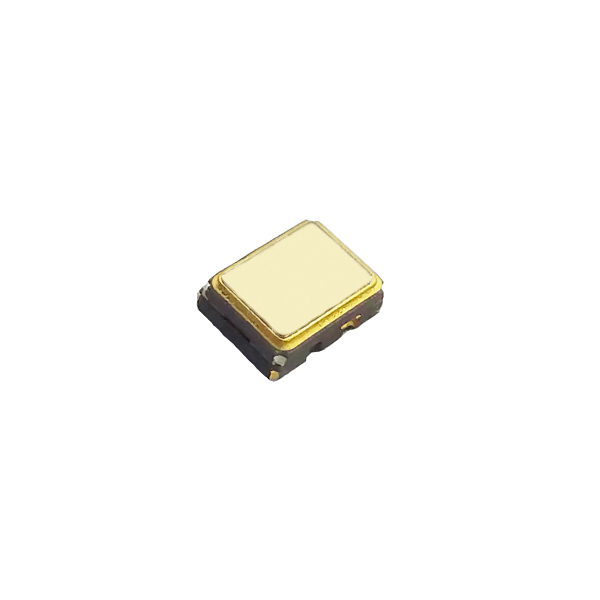

XO2520BM01-LP

Ultra-low Power Crystal Oscillator (XO)

Customizable: Yes

Features and Benefits

- Frequency range: 1MHz to 50MHz

- Supply voltage: 0.9V/1.2V/1.5V

- Current: 1.5mA Max.

- Frequency stability vs. temperature: ±25PPM-50PPM

- Aging: ±3PPM per year

- Operating temperature: -40°C to +85°C

- Size: 2.5x2.0x0.81 mm

Typical Applications

- loT

- Mobile Phones

- Ultra-small Notebook PC

- Digital Camera

- Wearable Device

- Digital Consumer Electronics

- Sport Video Cams


Product Specifications

General Parameters:
Type: XO
Supply Voltage (V): 0.9V, 1.2V, 1.5V
Frequency Min (MHz): 1.0 MHz
Frequency Max (MHz): 50.0 MHz
Frequency Stability (ppm): 50.0 ppm
Operating Temperature (°C): -40 to +85
Length: 2.50 mm
Width: 2.00 mm
Height: 0.81 mm
