XO2520Z3

Miniature SMD CMOS Clock Oscillator

Customizable: Yes
XO2520Z3
Data Sheet

Features and Benefits

  • Frequency from 1 MHz up to 80 MHz

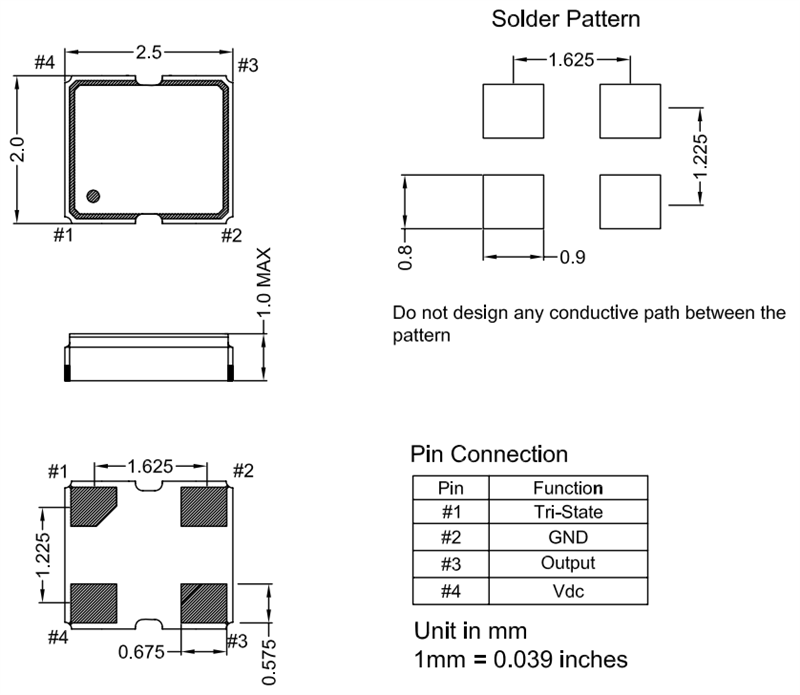

  • Sub miniature package: 2.5 x 2.0 x 1.0 mm
  • High shock and vibrational resistivity

Product Specifications

General Parameters:
Type: Standard XO
Frequency Min (MHz): 1 MHz
Frequency Max (MHz): 80 MHz
Frequency Stability (ppm): 25 ppm
Output Type: CMOS
Supply Voltage (V): 3.3 V
Operating Temperature (°C): -40 to +85
Length: 2.5 mm
Width: 2 mm
Height: 1 mm
