Extended Operating Temperature Range Crystal Oscillator

Customizable: Yes

Features and Benefits:

- Frequency Range: 1.25 to 100.00 MHz

- Output Waveform: CMOS

- Supply Voltage: 2.5V

- Frequency Stability: ±50.0ppm

- Operating Temperature: -40°C to +125°C

Typical Applications:

- harsh environment

- commercial aircraft / car engine

- oil drilling

- geothermal

- industrial instrument

*Please refer to the datasheet for additional options

Product Specifications

General Parameters:
Type: Extended Temperature XO
Supply Voltage (V): 2.5 V
Output Type: CMOS
Frequency Min (MHz): 1.25 MHz
Frequency Max (MHz): 100.00 MHz
Frequency Stability (ppm): 50.0 ppm
Operating Temperature (°C): -40 to +125

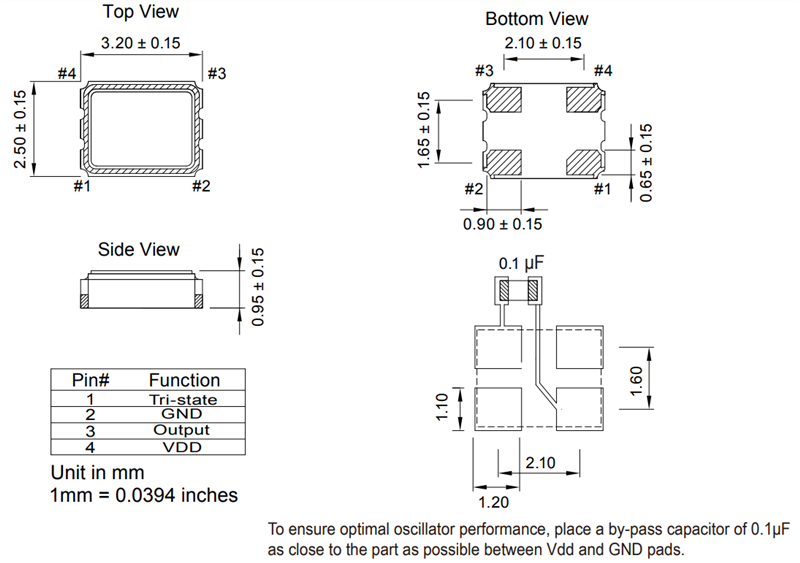

Length: 3.20 mm
Width: 2.50 mm
Height: 0.95 mm
