LVPECL SMD Crystal Oscillator (XO)

Customizable: Yes

Features and Benefits:

- Frequency Range: 10.0 to 250.0 MHz

- Output Waveform: LVPECL

- Supply Voltage: 3.3V

- Frequency Stability: ±50.0ppm

- Operating Temperature: -20°C to +70°C

Typical Applications:

- clock reference

- telecommunication

*Please refer to the datasheet for additional options

Product Specifications

General Parameters:
Type: XO
Supply Voltage (V): 3.3 V
Output Type: LVPECL
Frequency Min (MHz): 10.0 MHz
Frequency Max (MHz): 250.0 MHz
Frequency Stability (ppm): 50.0 ppm
Operating Temperature (°C): -20 to +70

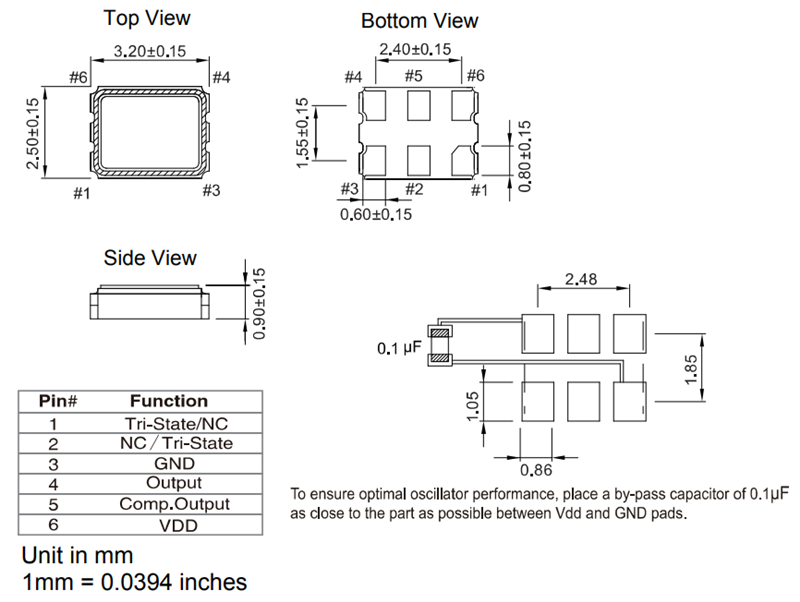

Length: 3.20 mm
Width: 2.50 mm
Height: 0.9 mm
