XO5300AC-66.6666MHz-A

Low Power SMD Crystal Oscillator (XO)

XO5300AC-66.6666MHz-A
Datasheet

Features and Benefits:

- Frequency Range: 66.6666 MHz

- Output Waveform: CMOS

- Supply Voltage: 1.8V

- Frequency Stability: ±50.0ppm

- Operating Temperature: -40°C to +85°C

Typical Applications:

- clock reference

- data communication

Product Specifications

General Parameters:
Type: XO
Frequency Min (MHz): 66.6666 MHz
Frequency Max (MHz): 66.6666 MHz
Frequency Stability (ppm): 50 ppm
Output Type: CMOS
Supply Voltage (V): 1.8 V
Operating Temperature (°C): -40 to +85

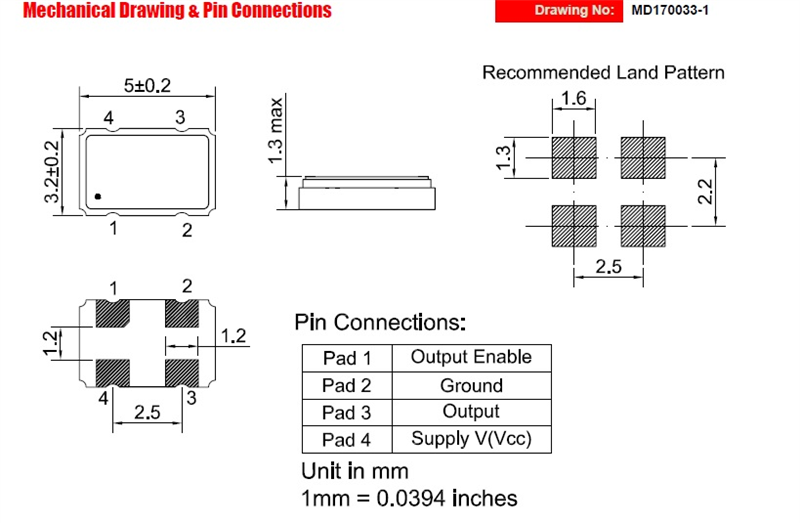

Length: 5 mm
Width: 3.2 mm
Height: 1.3 mm
