XO7500AC-140MHz-A

High Stability SMD Crystal Oscillator (XO)

XO7500AC-140MHz-A
Datasheet

Features and Benefits:

- Frequency Range: 140.0 MHz

- Output Waveform: CMOS

- Supply Voltage: 5.0V

- Frequency Stability: ±15.0ppm

- Operating Temperature: -40°C to +85°C

Typical Applications:

- clock reference

- telecommunication

Product Specifications

General Parameters:
Type: XO
Frequency Min (MHz): 140 MHz
Frequency Max (MHz): 140 MHz
Frequency Stability (ppm): 15 ppm
Output Type: CMOS
Supply Voltage (V): 5 V
Operating Temperature (°C): -40 to +85

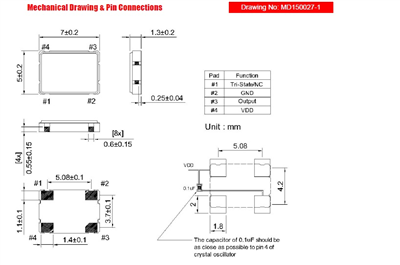

Length: 7 mm
Width: 5 mm
Height: 1.4 mm
