High Stability SMD Crystal Oscillator (XO)

Features and Benefits:

- Frequency Range: 25.0MHz

- Output Waveform: CMOS

- Supply Voltage: 3.3V

- Frequency Stability: ±25.0ppm

- Operating Temperature: -20°C to +70°C

Typical Applications:

- high quality digital to analog converter (DAC)

- digital communication system

Product Specifications

General Parameters:
Type: XO
Supply Voltage (V): 3.3 V
Output Type: CMOS
Frequency Min (MHz): 25.0 MHz
Frequency Max (MHz): 25.0 MHz
Frequency Stability (ppm): 25.0 ppm
Operating Temperature (°C): -20 to +70

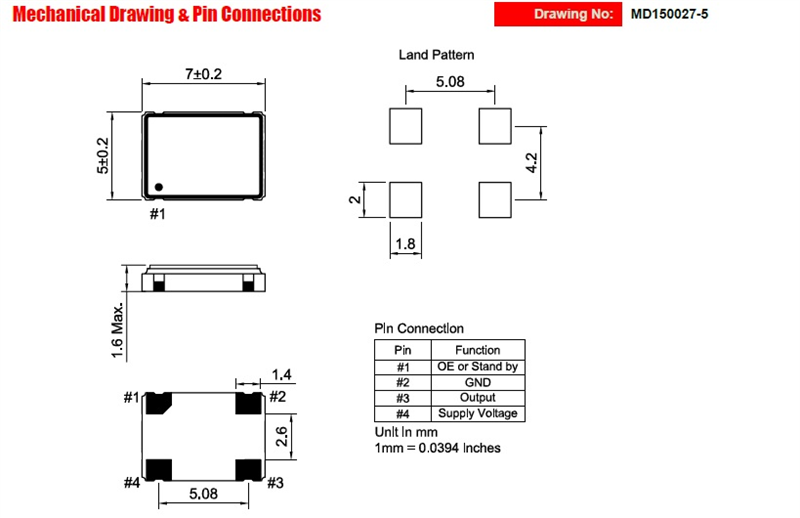

Length: 7.0 mm
Width: 5.0 mm
Height: 1.6 mm
