XO7500AO-50MHz-A

High Stability SMD Crystal Oscillator (XO)

XO7500AO-50MHz-A
Datasheet

Features and Benefits:

- Frequency Range: 50.0MHz

- Output Waveform: CMOS

- Supply Voltage: 3.3V

- Frequency Stability: ±50.0ppm

- Operating Temperature: -40°C to +85°C

Typical Applications:

- telecommunication

Product Specifications

General Parameters:
Type: XO
Frequency Min (MHz): 50 MHz
Frequency Max (MHz): 50 MHz
Frequency Stability (ppm): 50 ppm
Output Type: CMOS
Supply Voltage (V): 3.3 V
Operating Temperature (°C): -40 to +85

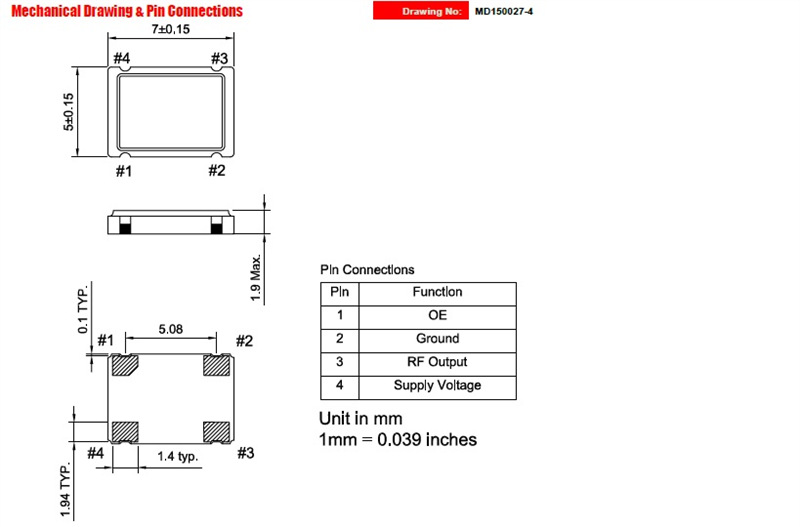

Length: 7 mm
Width: 5 mm
Height: 1.9 mm
