XO7500R-125MHz-LV-A

5 x 7 SMD XO

Customizable: Yes

The XO7500R series with LVDS outputs utilizes a fundamental crystal design that has no internal multiplication circuits to deliver the lowest possible phase jitter.

  • 10.0 MHz to 220 MHz operating frequency range for 3.3V supply
  • 16 mA typical
  • Less than +/- 25 ppm over -40°C to +85°C
  • LVDS outputs

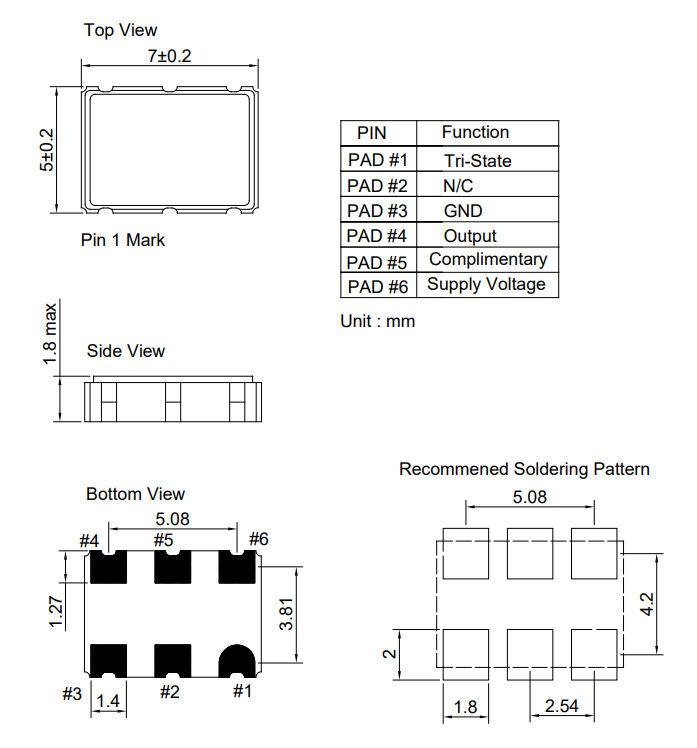

  • 7.0 x 5.0 x 1.8 mm SMD
  • 3.3V supply voltage
  • 200 fs typical integrated phase jitter (12KHz to 20 MHz)


Product Specifications

General Parameters:
Type: Standard XO
Supply Voltage (V): 3.3
Output Type: LVDS
Frequency Min (MHz): 125
Frequency Max (MHz): 125
Frequency Stability (ppm): 25
Operating Temperature (°C): -40 to +85
Length: 7
Width: 5
Height: 1.8
