XTAL2016AL-32MHz-A

SMD Crystal Units

Features and Benefits

  • Ultra-thin, thickness 1.0mm
  • Leadless type
  • High precision characteristic covering up to high frequency range
  • Designed for automatic mounting and reflow soldering
  • Embossed taping specification


Product Specifications

General Parameters:
Frequency Min (MHz): 32
Frequency Max (MHz): 32
Operating Temperature Range (°C): -20 to +70

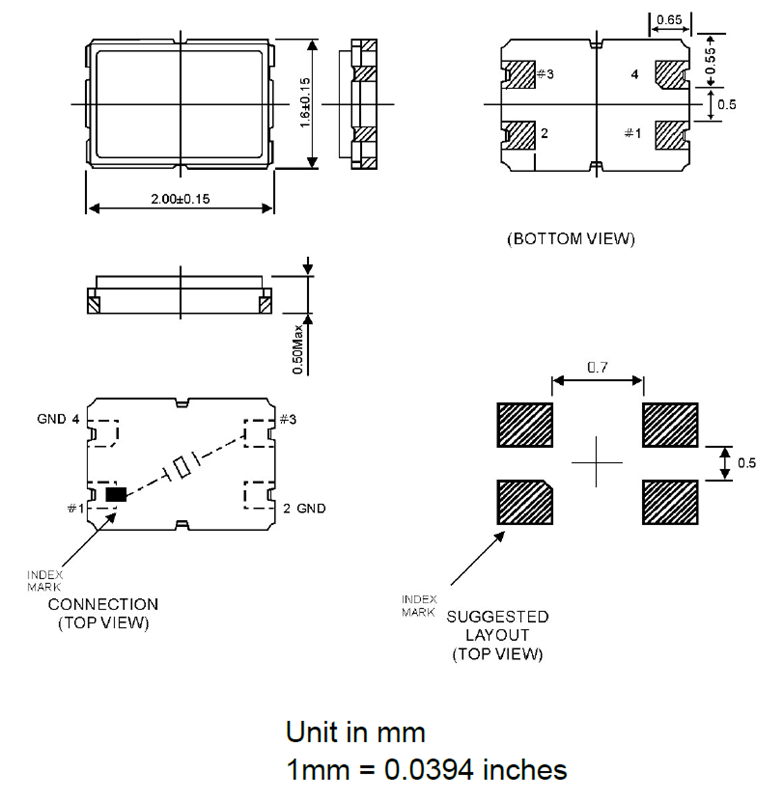

Length: 2
Width: 1.6
Height: 0.5
