Xtal2520S

Customizable: Yes

Features and Benefits

- Typical 2.5x2.0x0.45mm ultra-thin ceramic package

- 8mm width tape and reel package for automatic assembly

- Tight tolerance 10ppm available

General Parameters:
Frequency Min (MHz):	16 MHz
Frequency Max (MHz):	40 MHz
Frequency Stability (ppm):	±10, ±15, ±20, ±30, ±50
Operating Temperature Range (°C):	-40 to +85

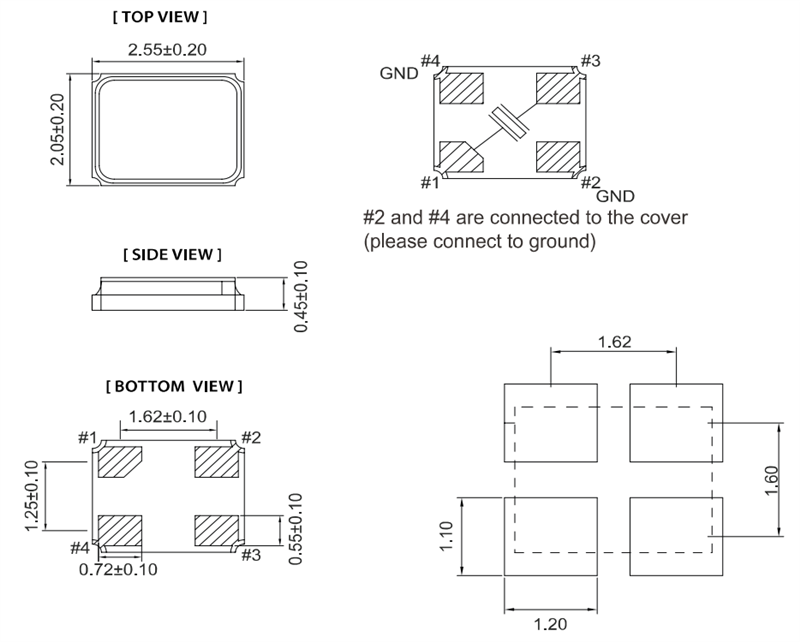

Size(LWH) mm:	2.5 x 2 x 0.45 mm
