XTAL51UCK-1.4MHz-A

1.4 MHz Crystals

Datasheet

Features and Benefits

- Frequency: 1.4 MHz

- Mode of Oscillation: Fundamental

- Shunt Capacitance: 7.0 pF

- Equivalent Resistance: 450 ohm

- Insulation Resistance: 500M ohm

- Frequency Stability: ±15 ppm (max)

- Operating Temperature: -20°C to +70°C

Product Specifications

General Parameters:
Frequency Min (MHz): 1.4 MHz
Frequency Max (MHz): 1.4 MHz
Operating Temperature Range (°C): -20 to +70

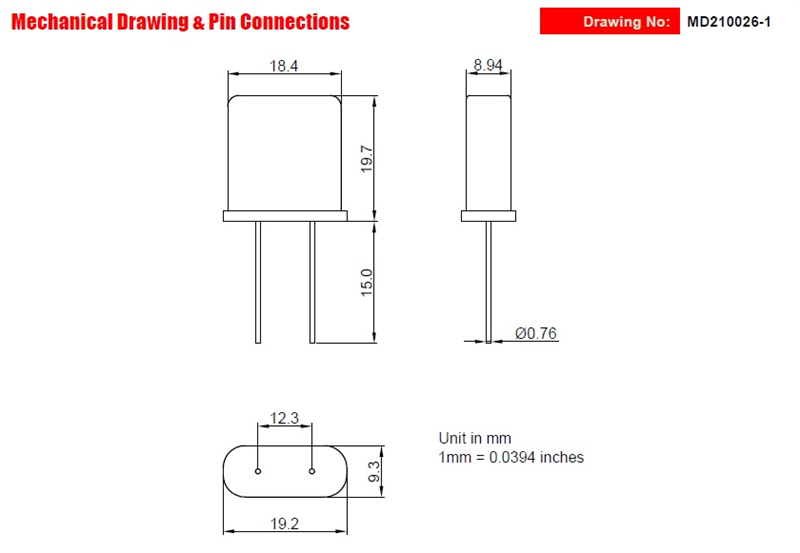

Length: 19.70 mm
Width: 19.20 mm
Height: 8.94 mm
