Features and Benefits
- Frequency Range: 100.0MHz
- Supply Voltage: 12.0V
- Current: 150mA Max
- Output Waveform: Sinewave
- Frequency Stability vs. Operating Temperature: ±100.0ppb
- Aging: ±1000.0ppb first year
- Phase Noise @ 10KHz: -160dBc/Hz
- Operating Temperature: -45°C to +85°C

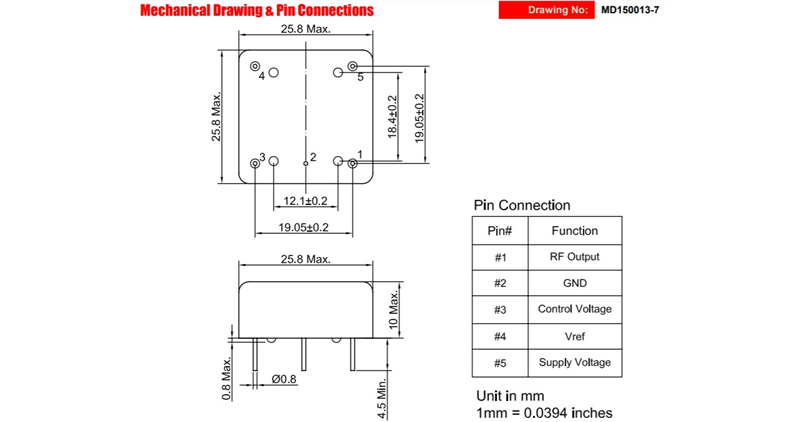

- Size: 25.8 x 25.8 x 10.0mm
Typical Applications
- cellular base station
- SATCOM
- radar
