Double Oven Ultra Precision Oven Controlled Crystal Oscillator (OCXO)

Features and Benefits

- Frequency range: 10MHz

- Supply voltage: 5V

- Steady current: 600mA/Max

- Output waveform: Sinewave

- Frequency stability vs. operating temperature: ±0.1PPB

- Aging: ±50PPB per year

- Phase noise@10KHz: -155dBc/Hz

- Operating temperature: -40°C to +85°C

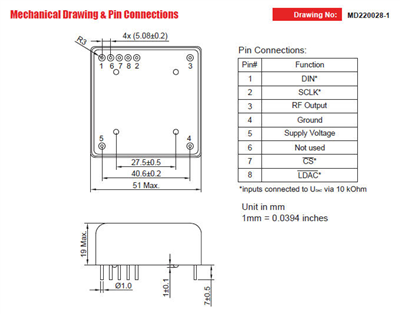

- Size: 51x51x19mm

Typical Applications

- 5G, Telecommunication, Test & Measurement

Product Specifications

General Parameters:
Type: OCXO
Frequency Min (MHz): 10.0 MHz
Frequency Max (MHz): 10.0 MHz
Output Type: Sinewave
Frequency Stability (ppb): 0.1 ppb
Supply voltage (V): 5.0 V
Operating Temperature (°C): -40 to +85
Length: 51.0 mm
Width: 51.0 mm
Height: 19.0 mm
