MCFUM-1BL-45MHz-A - New Product

45MHz Crystal Filter

Electrical Specifications

- Center Frequency: 45MHz

- Number of Poles: 4

- Channel Spacing: 50KHz

- Passband Width @ -3dB: ±15KHz min

- Ripple: 1dB max

- Insertion Loss: 3dB max

- Stopband Width @ -30dB: ±50KHz max

- Attenuation @ -80dB: ±300KHz to ±1000KHz

- Impedance:  1200Ohm/0.7pF

Operating Temperature

- -20°C to +70°C


Product Specifications

Custom:
Temp. Range (°C): -20 to +70
Impedance Ohms (Z): 1200
MCF:
Poles: 4
Stopband Max (±KHz): 50
Stopband Max (dB): -30
General Parameters:
Freq. (MHz): 45
Passband (±Khz): 15
Passband (dB): -3
Stopband (±Khz): 50
Stopband (dB): -30
Insertion Loss (dB): 3
Ripple Max (dB): 1

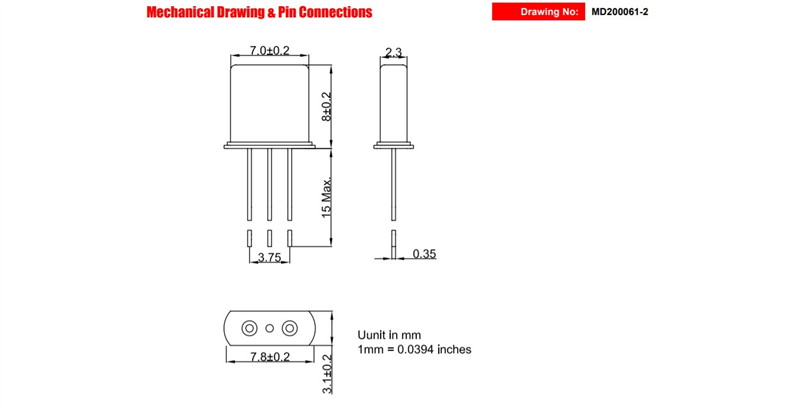

L x W x H (mm): 8.0 x 7.0 x 2.3
