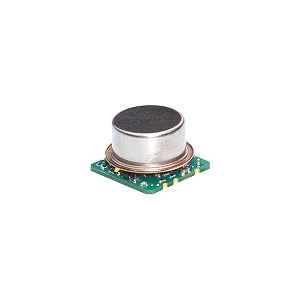

Low Power High Stability Miniature Oven Controlled Crystal Oscillator (OCXO)

Features and Benefits

- Frequency range: 100MHz

- Supply voltage: 5.0V

- Steady current: 40mA Max.

- Output waveform: Sine

- Frequency stability vs. operating temperature: ±30ppb

- Aging: ±2.0ppb/day

- Phase noise@100KHz: -168dBc/Hz

- Operating temperature: -40°C to +85°C

- Size: 16x15.24x11.6mm

Typical Applications

- Portable and Low Power Wireless

- Mobile Test Equipment

- Battery Powered Applications

- Beacons and Rescue Systems

Product Specifications

General Parameters:
Type: OCXO
Frequency Min (MHz): 100.0 MHz
Frequency Max (MHz): 100.0 MHz
Output Type: Sinewave
Frequency Stability (ppb): 30.0 ppb
Supply voltage (V): 5.0 V
Operating Temperature (°C): -40 to +85
Length: 16.00 mm
Width: 15.24 mm
Height: 11.60 mm
