Ultra Low Power Miniature Low Profile OCXO

Customizable: Yes

Features and Benefits

Frequency Range: 8.0MHz-100.0 MHz

Supply Voltage: 3.3V or 5.0V

Steady Current: 180mW Typ

Output Waveform: HCMOS (TTL) or Sinewave

Frequency Stability vs. Operating Temperature: ±5.0ppb

Aging: ±0.015 ppm per year

Phase Noise @ 100 kHz: -163 dBc/Hz

Operating Temperature: -40°C to +85°C

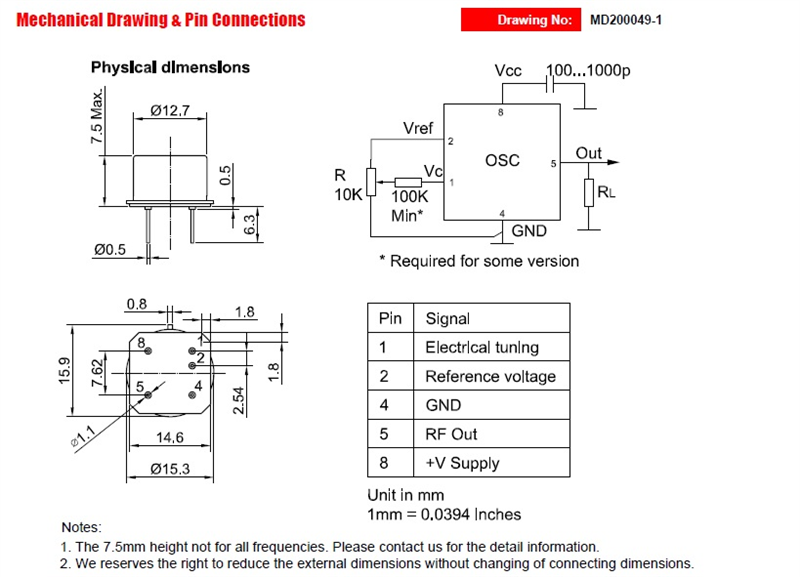

Size: 16.0 x 15.0 x 7.5 mm

Typical Applications

Portable Wireless Communication

Mobile Test Equipment

Beacons & Rescue Systems

Battery Powered Applications


With the crystal plate inside the TO-8 vacuum holder design, the OCXO3320AW can reduce the size, power consumption and warm-up time, while providing excellent frequency stability and low phase noise on par with the high-end conventional OCXO designs.

Product Specifications

General Parameters:
Type: OCXO
Frequency Min (MHz): 8.0 MHz
Frequency Max (MHz): 100.0 MHz
Output Type: HCMOS, Sinewave
Frequency Stability (ppb): 5.0 ppb
Supply voltage (V): 3.3 V, 5V
Operating Temperature (°C): -40 to +85
Length: 16.0
Width: 15.0
Height: 7.5
