9.7x7.5x4.1mm 30.72MHz Oven Controlled Crystal Oscillator (OCXO)

Features and Benefits

- Frequency range: 30.72MHz

- Supply voltage: 3.3V

- Steady state: 0.4W Max

- Output waveform: HCMOS

- Frequency stability vs. operating temperature: ±20ppb

- Aging: ±0.6ppm per year

- Phase noise@10KHz: -153dBc/Hz

- Operating temperature: -40°C to +85°C

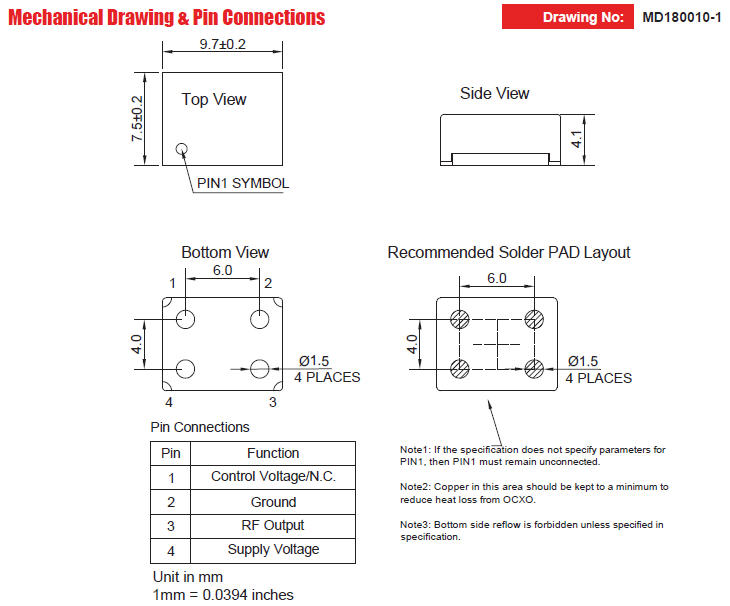

- Size:9.7x7.5x4.1mm

Typical Applications

- Small Cell, Portable Telecommunication Device

- Test and Instrumentation

- Synthesizer, Digital switch, Reference Timing Circuit

- Packet Timing Protocol ATCOM System

Product Specifications

General Parameters:
Sub Category: 1-50MHz
Type: OCXO
Frequency Min (MHz): 30.72 MHz
Frequency Max (MHz): 30.72 MHz
Output Type: HCMOS
Frequency Stability (ppb): 20.0 ppb
Supply voltage (V): 3.3 V
Operating Temperature (°C): -40 to +85
Length: 9.7 mm
Width: 7.5 mm
Height: 4.1 mm
