Features and Benefits
- Frequency range: 26-52MHz
- Supply voltage: 1.8V/2.5V/3.3V
- Steady current: 1.5-1.7mA Max
- Output waveform: Clipped Sinewave
- Frequency stability vs. operating temperature: ±2.0ppm
- Aging: ±1.0ppm per year
- Phase noise@1KHz: -135dBc/Hz
- Operating temperature: -30°C to +85°C

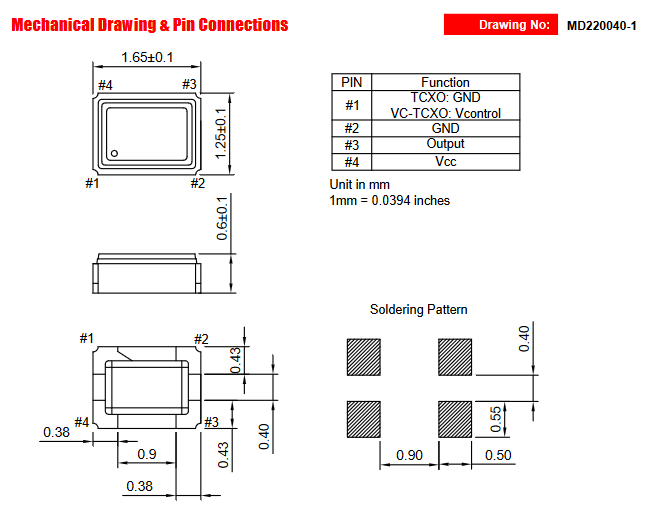

- Size: 1.65x1.25x0.6mm
Typical Applications
- Indoor Positioning System
