TCXO2017BM

2.0 x 1.6 mm SMD Voltage Controlled Temperature Compensated Crystal Oscillator (VCTCXO)

Customizable: Yes
TCXO2017BM
Datasheet

Features and Benefits

  • Typical 2.0 x 1.6 x 0.7 mm ceramic SMD package
  • For automatic assembly.
  • Compactness and lightweight.
  • Miniature size and low profile.

Product Specifications

General Parameters:
Sub Category: Miniature Size, High Stability
Type: Standard TCXO
Frequency Min (MHz): 10 MHz
Frequency Max (MHz): 52 MHz
Supply Voltage (V): 1.8 V, 2.5 V, 2.8 V, 3 V, 3.3 V
Output Type: Clipped Sinewave
Frequency Stability (ppb/ppm): 0.2 ppm
Operating Temperature (°C): -40 to +85

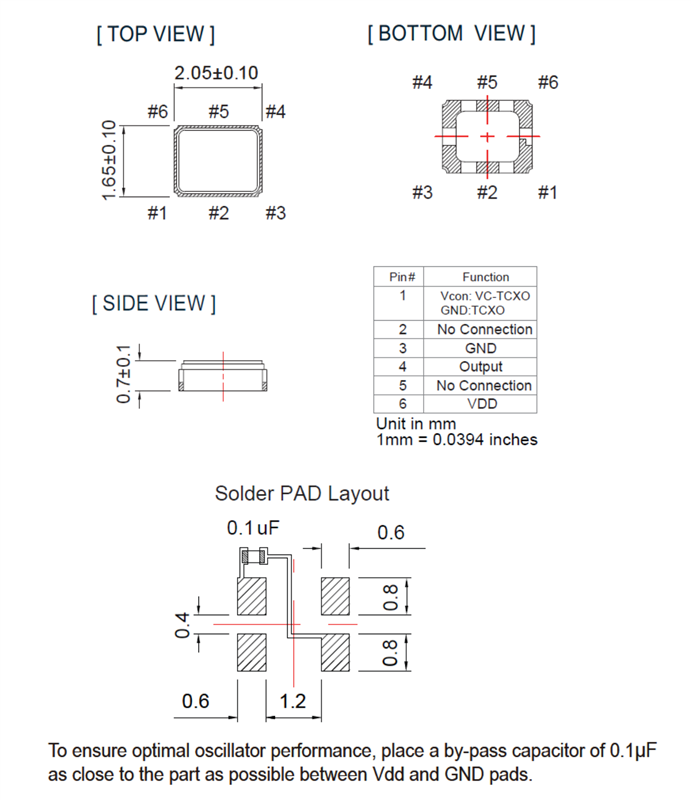

Length: 2.05 mm
Width: 1.65 mm
Height: 0.7 mm
