TCXO5302BM_series

Ultra High Precision SMD TCXO

Customizable: Yes

Features and Benefits

- Frequency Range: 10.0MHz to 52.0MHz

- Supply Voltage: 2.5, 3.3V

- Steady Current: 7.5mA (Max)

- Output Waveform: Clipped Sinewave, CMOS

- Frequency Stability vs. Operating Temperature: ±0.05ppm

- Aging: ±1.0ppm first year

- Phase Noise @ 100KHz: -157dBc/Hz

- Operating Temperature: -40°C to +105°C

- Size: 5.00 x 3.20 x 1.85mm

Typical Applications

- Time Synchronization

- Microwave Communication

- SATCOM

- Telecom Systems


Product Specifications

General Parameters:
Type: TCXO
Frequency Min (MHz): 10.0 MHz
Frequency Max (MHz): 52.0 MHz
Supply Voltage (V): 2.5, 3.3V
Output Type: Clipped Sinewave, CMOS
Frequency Stability (ppm): 0.05 ppm
Operating Temperature (°C): -40 to +105

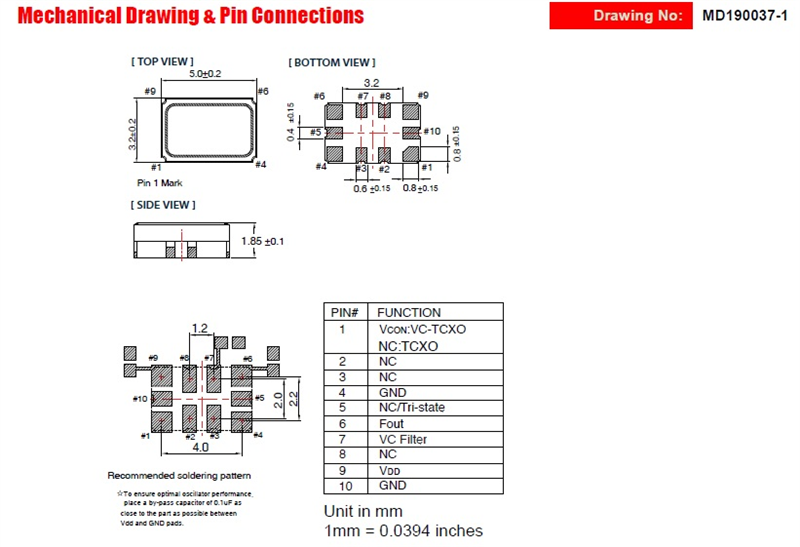

Length: 5.00 mm
Width: 3.20 mm
Height: 1.85 mm
