TCXO7500BM-40MHz-B - New Product

40MHz TCXO

TCXO7500BM-40MHz-B is designed for applications where exceptional frequency stability and timing is required. It has both excellent temperature performance and short-term stability. These characteristics make it an excellent choice for timing applications.


Product Specifications

General Parameters:
Type: High Stability TCXO
Frequency Min (MHz): 40
Frequency Max (MHz): 40
Supply Voltage (V): 5
Output Type: CMOS
Frequency Stability (ppm): 0.2
Operating Temperature (°C): -20 to +70

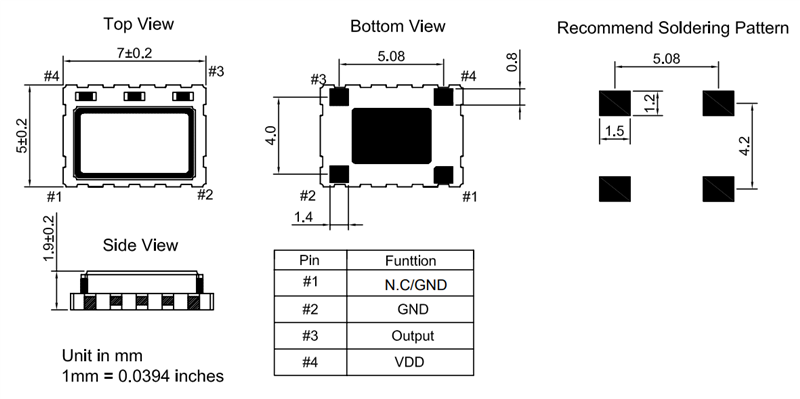

Length: 7
Width: 5
Height: 1.9
