TCXO7500BT-50MHz-B-V

High Precision Temperature Compensated Crystal Oscillator (TCXO)

TCXO7500BT-50MHz-B-V
Datasheet

Features and Benefits

- High Frequency Stability (up to ±0.1ppm over -40°C to +85°C)

- Clipped Sinewave Output

- SMD Miniature Package

Typical Applications

- UHF Synthesizers

- SATCOM Systems

- Portable Microwave Applications

Product Specifications

General Parameters:
Sub Category: High Stability
Type: TCXO
Frequency Min (MHz): 50 MHz
Frequency Max (MHz): 50 MHz
Supply Voltage (V): 3.3 V
Output Type: Clipped Sinewave
Frequency Stability (ppb/ppm): 0.1 ppm
Operating Temperature (°C): -40 to +85

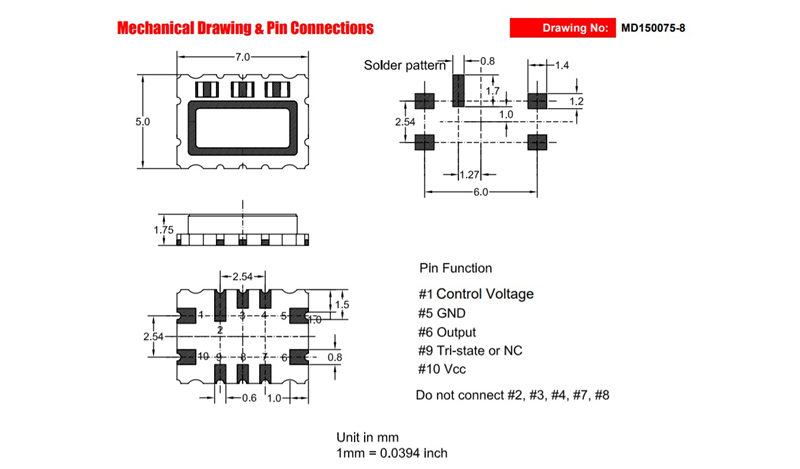

Length: 7 mm
Width: 5 mm
Height: 2.54 mm
