TCXO914BT-100MHz-A

Low G Sensitivity, Vibration and Shock Resistant High Stability Ultra Low Noise Sinewave TCXO

Features and Benefits

- Frequency Range: 100.0MHz

- Supply Voltage: 3.3V

- Steady Current: 28.0mA (Max)

- Output Waveform: Sinewave

- Frequency Stability vs. Operating Temperature: ±1.0ppm

- Aging: ±1.0ppm first year

- Phase Noise @ 10KHz: -172 dBc/Hz

- Operating Temperature: -40°C to +85°C

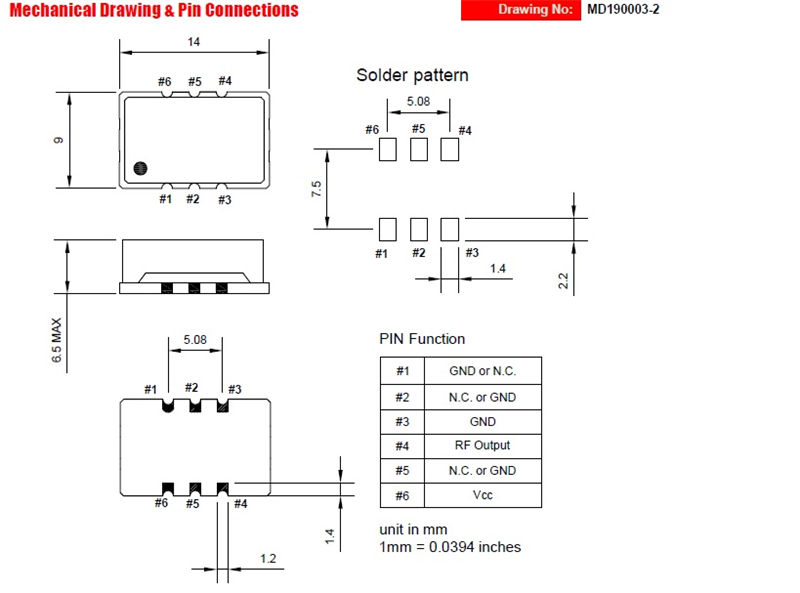

- Size: 14.0 x 9.0 x 6.5mm

Typical Applications

- 5G Repeater

- Low Noise Microwave

- Link and Micro Cells


Product Specifications

General Parameters:
Type: TCXO
Frequency Min (MHz): 100.0 MHz
Frequency Max (MHz): 100.0 MHz
Supply Voltage (V): 3.3 V
Output Type: Sinewave
Frequency Stability (ppm): 1.0 ppm
Operating Temperature (°C): -40 to +85
Length: 14.0 mm
Width: 9.0 mm
Height: 6.5 mm
