XO3001-125.000000-2-1

Very Low Jitter LVDS Clock Oscillator

Customizable: Yes
XO3001-125.000000-2-1
Data Sheet

Product Specifications

General Parameters:
Type: Low Jitter XO
Frequency Min (MHz): 125 MHz
Frequency Max (MHz): 125 MHz
Frequency Stability (ppm): 20 ppm
Output Type: LVPECL
Supply Voltage (V): 3.3 V
Operating Temperature (°C): -40 to +85

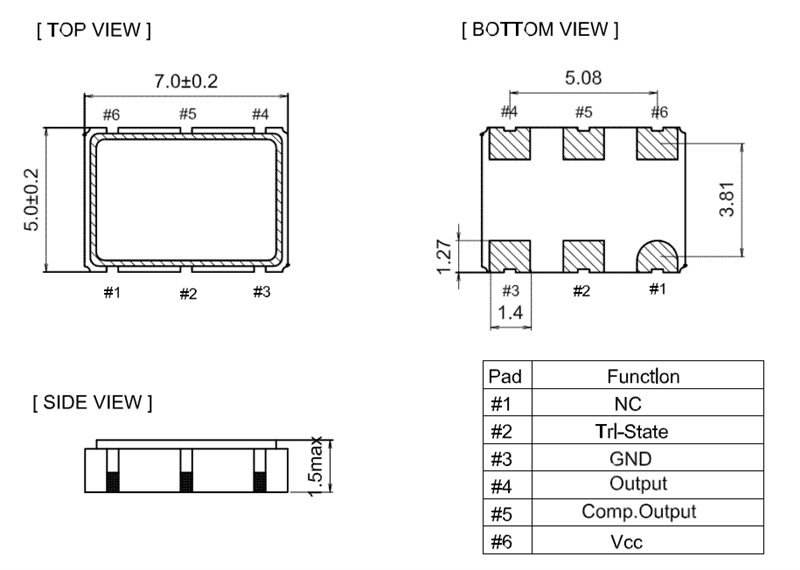

Length: 7 mm
Width: 5 mm
Height: 1.5 mm
