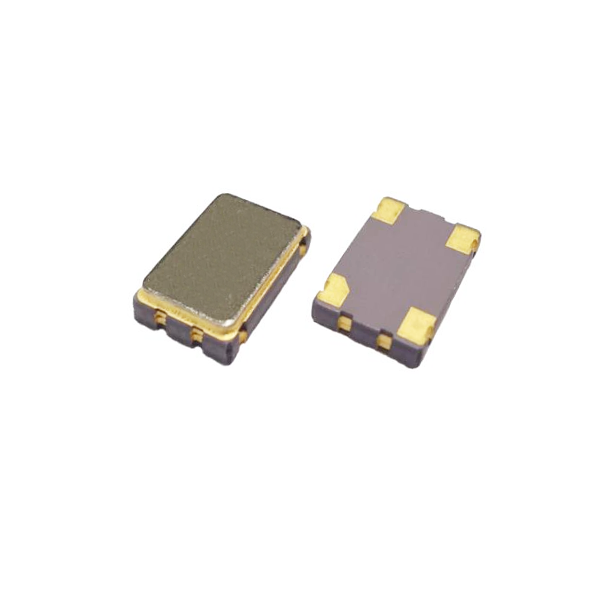

Ultra-Low Jitter Crystal Oscillator (XO)

Features and Benefits

- Frequency range: 25MHz
- Supply voltage: 3.3V
- Current: 10mA Max.
- Frequency stability vs. temperature: ±25PPM
- Aging: ±3PPM 1st year
- Operating temperature: -10°C to +70°C
- Size: 3.2x2.5x1.0 mm

Typical Applications

- Wearable device
- Sport Video Cams
- Ultra-small Notebook PC
- Mobile Phones
- Digital Circuit

Product Specifications

General Parameters:
Type: XO
Supply Voltage (V): 3.3 V
Output Type: CMOS
Frequency Min (MHz): 25.0 MHz
Frequency Max (MHz): 25.0 MHz
Frequency Stability (ppm): 25.0 ppm
Operating Temperature (°C): -10 to +70
Length: 3.2 mm
Width: 2.5 mm
Height: 1.0 mm
