XO3226BM

3.2 x 2.5 mm SMD Crystal Oscillator

Customizable: Yes
XO3226BM
Datasheet

Features and Benefits

  • Tight Tolerance: ±4 ppm accuracy @25°C, ±4 ppm over -40°C to +85°C
  • LVCMOS Output Logic
  • Tight symmetry (45 to 55%) available.
  • Operation voltage: 1.8V, 2.5V, 3.3V.
  • Tri-state enable/disable.
  • Femto second phase jitter and -152dBc/Hz at 10kHz offset.

Product Specifications

General Parameters:
Type: Standard XO
Frequency Min (MHz): 19 MHz
Frequency Max (MHz): 60 MHz
Frequency Stability (ppm): 5 ppm, 10 ppm, 15 ppm
Output Type: CMOS
Supply Voltage (V): 1.8 V, 2.5 V, 3.3 V
Operating Temperature (°C): -40 to +85

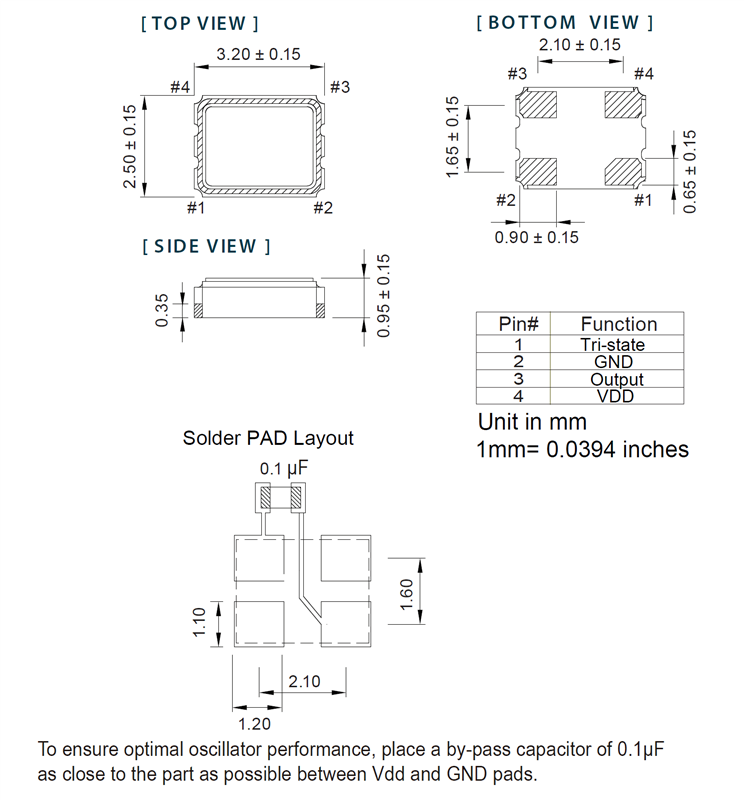

Length: 3.2 mm
Width: 2.5 mm
Height: 0.95 mm
