XTAL49USBC-ET-30MHz-A

High Temperature HC49US Crystal

Features and Benefits

- Frequency Range: 30MHz

- Load Capacitance: 15pF

- Drivel Level: 50uW - 1mW

- Stability: ±100ppm

- Operating Temperature: -45°C to +200°C

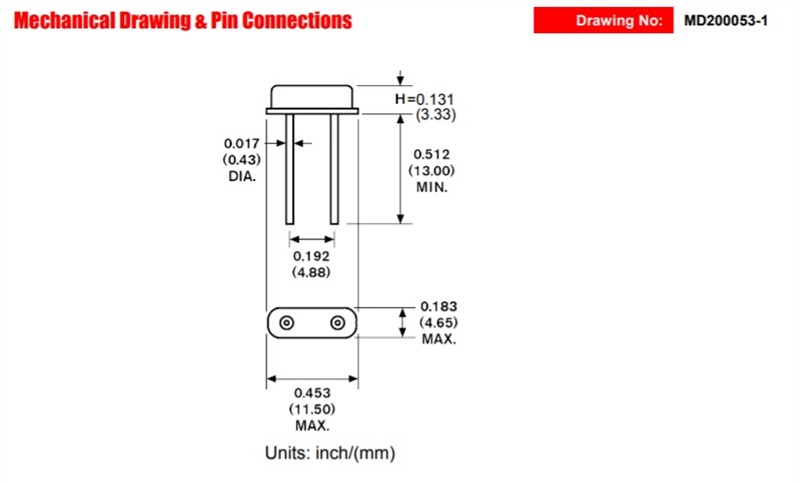

- Size: 11.50 x 4.65 mm

Typical Application

- Any reliable high temperature operation field


Product Specifications

General Parameters:
Frequency Min (MHz): 30
Frequency Max (MHz): 30
Operating Temperature Range (°C): -45 to +200
Length: 11.50
Width: 4.65
Height: 3.33
