12.8MHz SMD Crystal Units

Features and Benefits

- Frequency range: 12.8MHz
- Load capacitance: 8pF
- Drivel level: 100uW
- Stability: ±10PPM
- Operating temperature: -20°C to +70°C

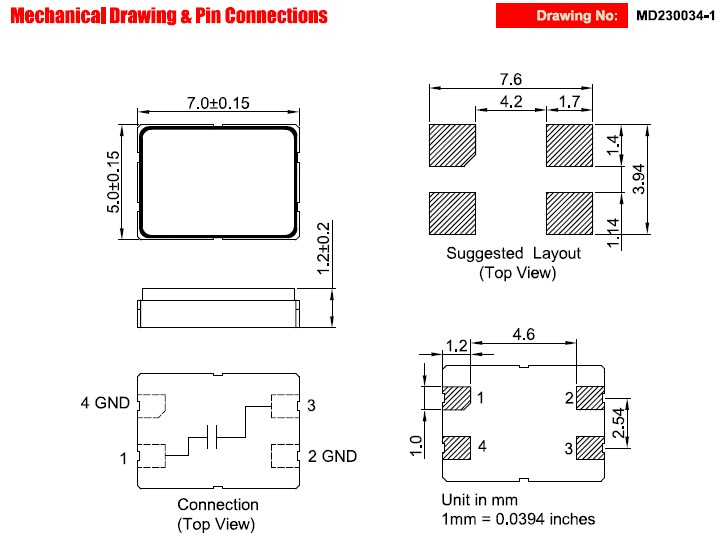

- Size: 7X5X1.2mm

Typical Applications

- Bluetooth wireless communication sets

- DSN, PDA and Mobile Phone

Product Specifications

General Parameters:
Frequency Min (MHz): 12.8 MHz
Frequency Max (MHz): 12.8 MHz
Operating Temperature Range (°C): -20 to +70
Length: 7.0 mm
Width: 5.0 mm
Height: 1.2 mm
