High Temperature SMD Crystal Oscillator (XO)

Features and Benefits:

- Frequency Range: 12.288MHz

- Output Waveform: CMOS

- Supply Voltage: 3.3V

- Frequency Stability: ±150.0ppm

- Operating Temperature: 0°C to +175°C

Typical Applications:

- down-hole tools

- harsh environment

Product Specifications

General Parameters:
Type: XO
Supply Voltage (V): 3.3
Output Type: CMOS
Frequency Min (MHz): 12.288 MHz
Frequency Max (MHz): 12.288 MHz
Frequency Stability (ppm): 150.0 ppm
Operating Temperature (°C): 0 to +175

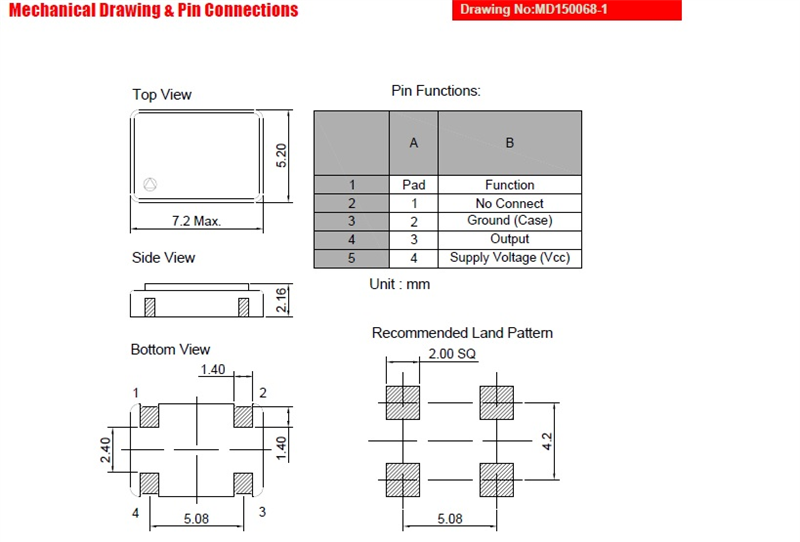

Length: 7.20 mm
Width: 5.20 mm
Height: 2.16 mm
