ETXO7500I-32.768KHz-A

Extreme Temperature SMD Crystal Oscillator (XO)

Datasheet

Features and Benefits:

- Frequency Range: 32.768KHz

- Output Waveform: CMOS

- Supply Voltage: 3.3V

- Frequency Stability: ±170.0ppm

- Operating Temperature: 0°C to +200°C

Typical Applications:

- SATCOM

- harsh environment

- downhole

- oil and gas

Product Specifications

General Parameters:
Sub Category: KHz XO
Type: XO
Supply Voltage (V): 3.3 V
Output Type: CMOS
Frequency Min (MHz): 32.768 KHz
Frequency Max (MHz): 32.768KHz
Frequency Stability (ppm): 170.0 ppm
Operating Temperature (°C): 0 to +200

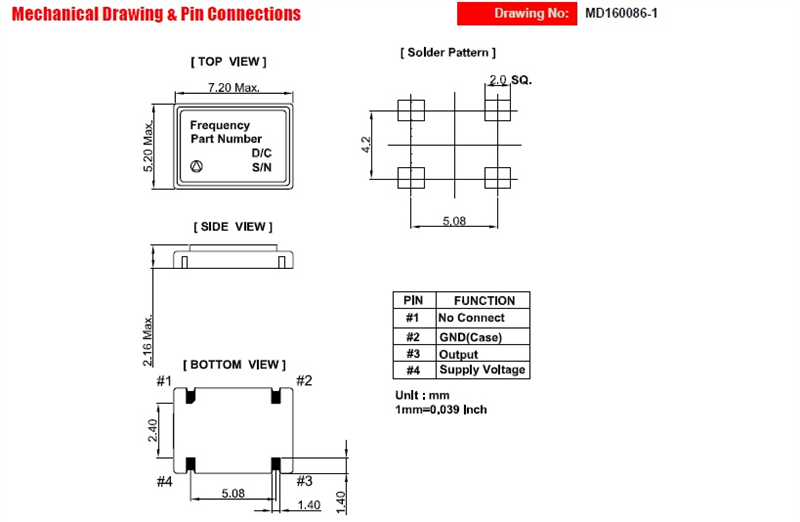

Length: 7.20 mm
Width: 5.20 mm
Height: 2.16 mm
