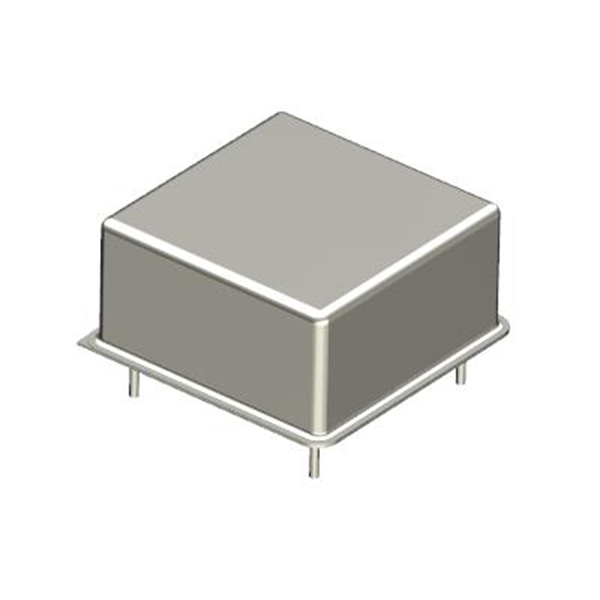

OCXO2525BM-FD-10MHz_Sine-3211

High Stability Oven Controlled Crystal Oscillator (OCXO)

Features and Applications

- Frequency Range: 10.0 MHz

- Supply Voltage: 5.0V

- Steady Current: 1.3W Max

- Output Waveform: Sinewave

- Frequency Stability over Operating Temperature: ±10.0ppb

- Aging: up to ±50ppb first year

- Phase Noise @ 10KHz: -152dBc/Hz

- Operating Temperature: -40°C to +85°C

- Size: 25.78 x 25.78 x 12.7mm

Typical Applications

- reference timing circuits

- small cell

- synthesizer

- packet timing protocol ATCOM system

- test and instrumentation


Product Specifications

General Parameters:
Sub Category: 1-50MHz
Type: OCXO
Frequency Min (MHz): 10.0 MHz
Frequency Max (MHz): 10.0 MHz
Output Type: Sinewave
Frequency Stability (ppb): 10.0 ppb
Supply voltage (V): 5.0 V
Operating Temperature (°C): -40 to +85
Length: 25.78 mm
Width: 25.78 mm
Height: 12.70 mm
