OCXO2525S-100MHz-ULN-4

Low Phase Noise Oven Controlled Crystal Oscillator (OCXO)

Features and Benefits

- Frequency Range: 100.0MHz

- Supply Voltage: 12.0V

- Steady Current: 380mA Max

- Output Waveform: Sinewave

- Frequency Stability vs. Operating Temperature: ±50.0ppb

- Aging: ±500ppb per year

- Phase Noise @ 10KHz: -173dBc/Hz

- Operating Temperature: -20°C to +70°C

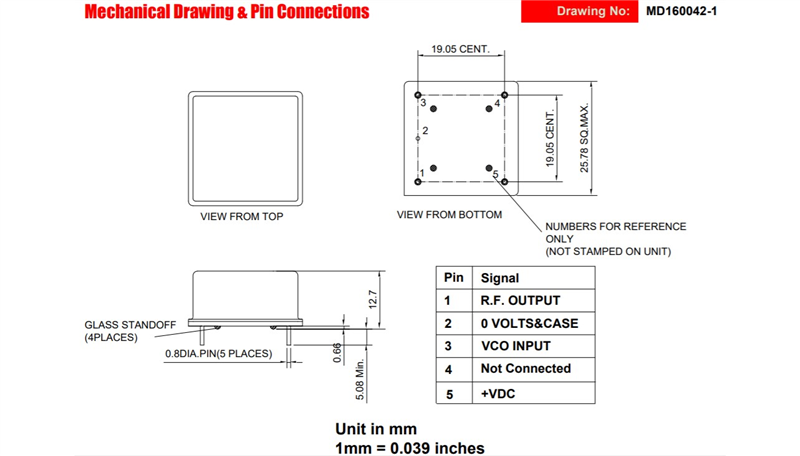

- Size: 25.78 x 25.78 x 12.70mm

Typical Applications

- instrument reference

- microwave signal source clock reference

- radar

- test instrumentation


Product Specifications

General Parameters:
Type: OCXO
Frequency Min (MHz): 100.0 MHz
Frequency Max (MHz): 100.0 MHz
Output Type: Sinewave
Frequency Stability (ppb): 50.0 ppb
Supply voltage (V): 12.0 V
Operating Temperature (°C): -20 to +70
Length: 25.78 mm
Width: 25.78 mm
Height: 12.70 mm
