Features and Applications
- Frequency Range: 20.0MHz
- Supply Voltage: 3.3V
- Steady Current: 0.15W Max
- Output Waveform: HCMOS
- Frequency Stability over Operating Temperature: ±50.0ppb
- Aging: ±200ppb first year
- Phase Noise @ 10KHz: -160dBc/Hz
- Operating Temperature: -40°C to +85°C

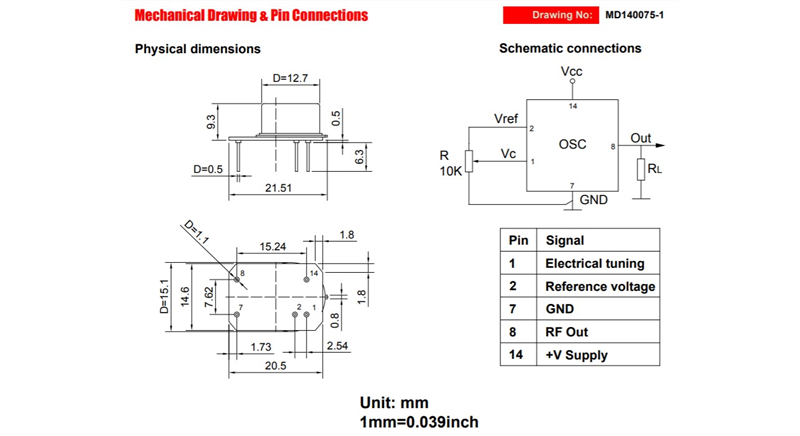

- Size: 21.51 x 15.1 x 8.0mm
Typical Applications
- mobile test equipment
- synthesizer
- battery powered application
- wireless
