TCXO1212BE_Sine

Customizable: Yes

Features and Benefits

- Frequency Range: 10 - 50MHz

- Supply Voltage: 3.3V or 5.0V

- Steady Current: 12 - 30mA Max

- Output Waveform: Sinewave

- Frequency Stability vs. Operating Temperature: ±0.5ppm

- Aging: ±1.0ppm per year

- Phase Noise @ 100KHz: -145dBc/Hz

- Operating Temperature: -40°C to +85°C

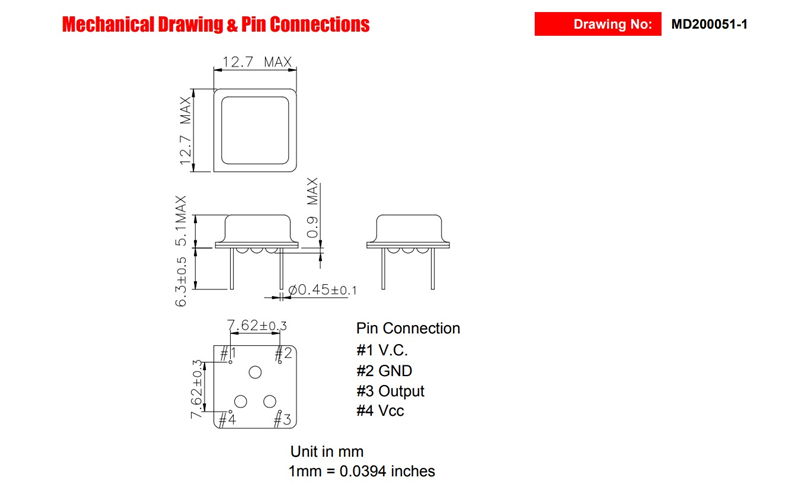

- Size: 12.7 x 12.7 x 5.1mm

Typical Applications

- UHF Synthesizers

- SATCOM System

- Portable Microwave Applications


Product Specifications

General Parameters:
Type: TCXO
Frequency Min (MHz): 10
Frequency Max (MHz): 50
Supply Voltage (V): 3.3, 5.0
Output Type: Sinewave
Frequency Stability (ppm): 0.5
Operating Temperature (°C): -40 to +85
Length: 12.7
Width: 12.7
Height: 5.1
