Features and Benefits
- Frequency Range: 32MHz
- Supply Voltage: 5.0V
- Steady Current: 30mA (Max)
- Output Waveform: Sinewave
- Frequency Stability vs. Operating Temperature: ±5ppm
- Aging: ±1ppm per year
- Phase Noise @ 10KHz: -145dBc/Hz
- Operating Temperature: -40°C to +85°C

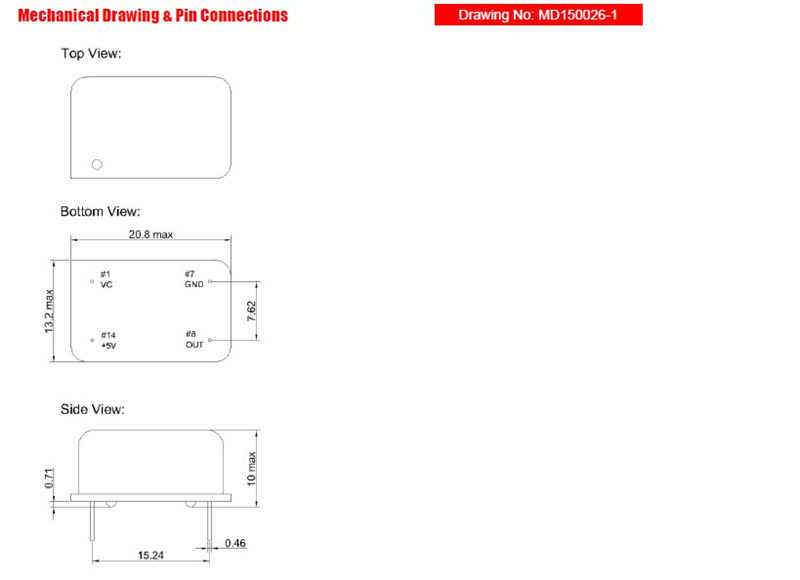

- Size: 20.8 x 13.2 x 10.0mm
Typical Applications
- Synthesizers
- Local Oscillator Reference
- Radar
