Features and Benefits
- Frequency Range: 26.0MHz
- Supply Voltage: 3.3V
- Steady Current: 10.0mA (Max)
- Output Waveform: Squarewave
- Frequency Stability vs. Operating Temperature: ±1.0ppm
- Aging: ±1.0ppm per year
- Phase Noise @ 1KHz: -130dBc/Hz
- Operating Temperature: -20°C to +70°C

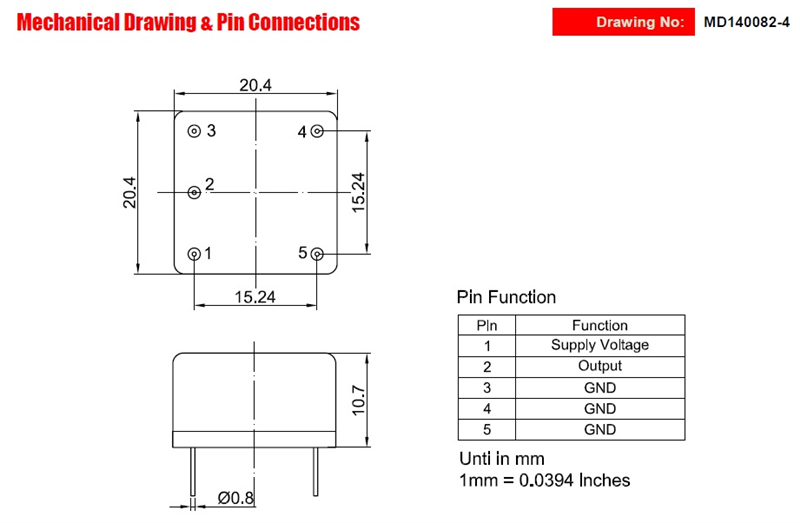

- Size: 20.4 x 20.4 x 10.7mm
Typical Applications
- Synthesizers
- SATCOM Systems
- Portable Applications
