Features and Benefits
- Frequency Range: 16MHz
- Supply Voltage: 3.3V
- Steady Current: 6mA Max
- Output Waveform: CMOS
- Frequency Stability vs. Operating Temperature: ±1ppm
- Aging: ±1ppm per year
- Phase Noise @ 1KHz: -135dBc/Hz
- Operating Temperature: -40°C to +85°C

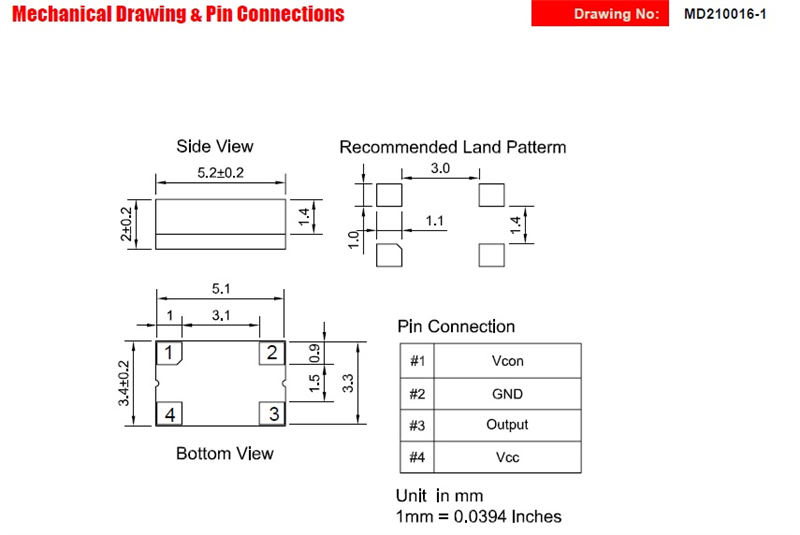

- Size: 5.1 x 3.4 x 2.0mm
Typical Applications:
- UHF Synthesizers
- SATCOM System
- Portable Microwave Applications
