TCXO5300THP-25MHz-B-V

Very High Stability High Performance SMD TCXO

Features and Benefits

- Frequency Range: 25.0MHz

- Supply Voltage: 3.3V

- Steady Current: 3.5mA (Max)

- Output Waveform: Clipped Sinewave

- Frequency Stability vs. Operating Temperature: ±0.2ppm

- Aging: ±1.0ppm first year

- Phase Noise @ 10KHz: -145dBc/Hz

- Operating Temperature: -5°C to +85°C

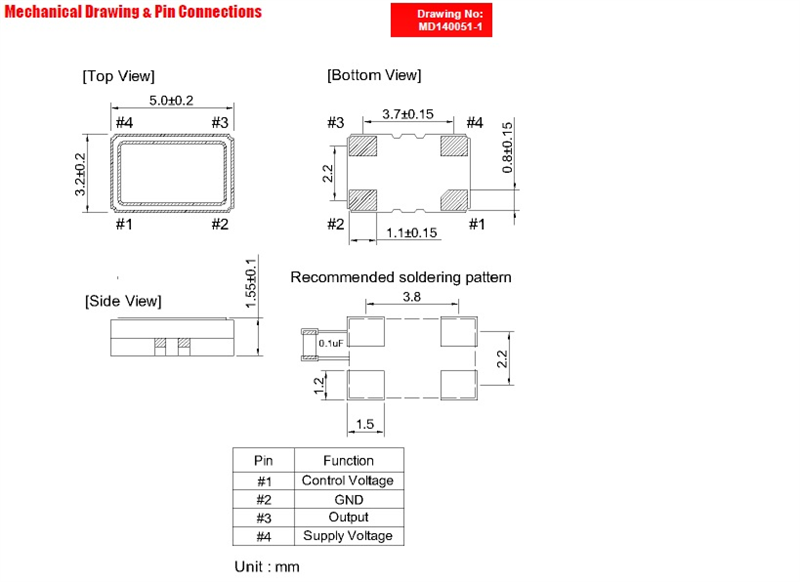

- Size: 5.0 x 3.2 x 1.55mm

Typical Applications

- Mobile Radio

- GPS

- Beidou Navigation Systems


Product Specifications

General Parameters:
Type: TCXO
Frequency Min (MHz): 25.0 MHz
Frequency Max (MHz): 25.0 MHz
Supply Voltage (V): 3.3 V
Output Type: Clipped Sinewave
Frequency Stability (ppm): 0.2 ppm
Operating Temperature (°C): -5 to +85
Length: 5.00 mm
Width: 3.20 mm
Height: 1.55 mm
