TCXO7500AP_3.3Vseries

Ultra Stable SMD TCXO

Customizable: Yes

Features and Benefits

- Frequency Range: 10.0MHz to 40.0MHz

- Supply Voltage: 3.3V

- Steady Current: 6.0mA (Max)

- Output Waveform: Clipped Sinewave, CMOS

- Frequency Stability vs. Operating Temperature: ±0.07ppm

- Aging: ±4.6ppm over 15 years

- Operating Temperature: -40°C to +105°C

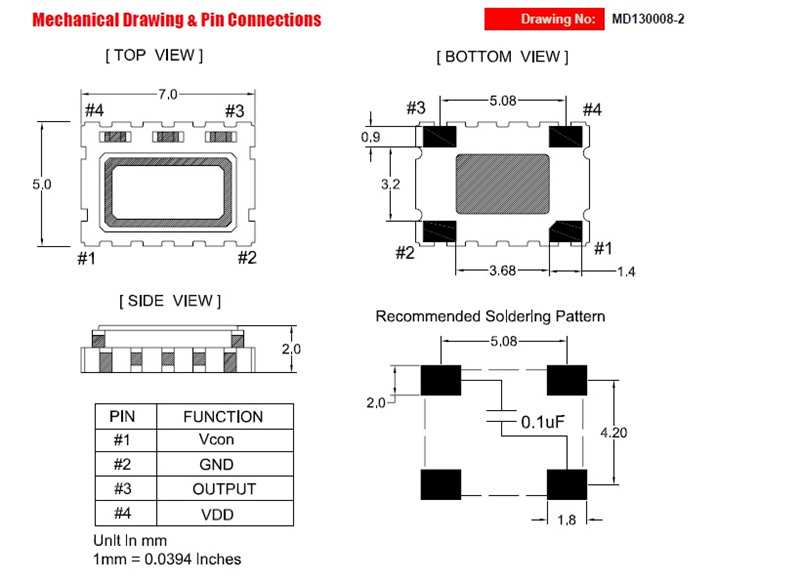

- Size: 7.0 x 5.0 x 2.0mm

Typical Applications

- GPS

- WLAN/WiMAX


Product Specifications

General Parameters:
Type: TCXO
Frequency Min (MHz): 10.0 MHz
Frequency Max (MHz): 40.0 MHz
Supply Voltage (V): 3.3V
Output Type: Clipped Sinewave, CMOS
Frequency Stability (ppm): 0.07 ppm
Operating Temperature (°C): -40 to +105
Length: 7.0 mm
Width: 5.0 mm
Height: 2.0 mm
