Features and Benefits
- Frequency Range: 19.2MHz
- Supply Voltage: 3.3V
- Steady Current: 3.5mA
- Output Waveform: Clipped sinewave
- Frequency Stability vs. Operating Temperature: ±0.2ppm
- Aging: ±1.0ppm
- Phase Noise @ 1kHz : -142dBc/Hz
- Operating Temperature: -40°C to +85°C

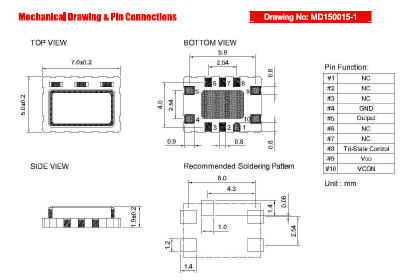

- Size: 7.0 x 5.0 x 1.9mm
Typical Applications
- Mobile Radio
- GPS Reference
- Beidou Navigation Systems
