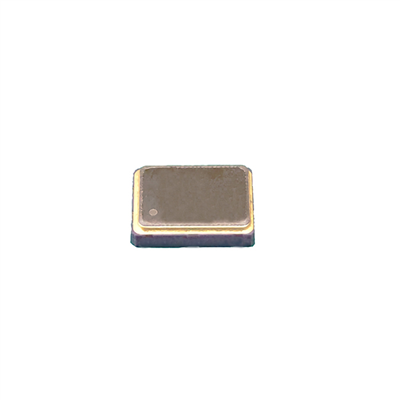

VCXO3225AL-LVPECL-10MHz-221

Low Phase Jitter Small Size Voltage Controlled Crystal Oscillator (VCXO)

Features and Benefits

- Frequency range: 10MHz

- Supply voltage: 3.3V

- Steady current: 50mA Max

- Output waveform: LVPECL

- Frequency tolerance: ±50ppm

- Pulling range: ±50ppm

- Operating temperature: -40°C to +85°C

- Size: 3.2x2.5x0.9mm

Typical Applications

- High-speed ethernet

- Fiber channel

- HDTV

- ATM

- Set-top box

- WiMAX

- Server

- SAS

- SATA


Product Specifications

General Parameters:
Type: VCXO
Frequency Min (MHz): 10 MHz
Frequency Max (MHz): 10 MHz
Frequency Stability (ppm): 50 ppm
Output Type: LVPECL
Supply Voltage (V): 3.3 V
Operating Temperature (°C): -40 to +85
Length: 3.2 mm
Width: 2.5 mm
Height: 0.9 mm
